Learning to Hybrid Search:

mixing BM25, LLMs and metadata into an ultimate ranking ensemble

This is me

• Long ago: PhD in CS, quant trading, credit scoring
• Search & personalization for ~7 years
• Metarank maintainer
• DeliveryHero: search & relevance

A typical "hybrid search" talk:

• A is [maybe] better than B
• Large C is [a bit] smarter than small D
• You [probably] need E

No numbers, no comparisons

• Reproducability: proprietary tools and data
• Legal: insider information

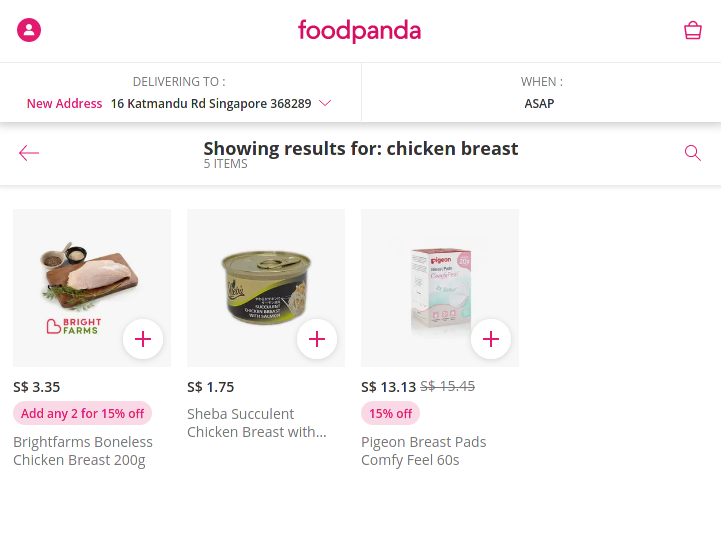

Many companies, same problems

• Relevance: making visitor happier
• CTR/Conversion: making company happier
• Query understanding: language, intent, semantics

Open data + open tools

One step closer to reproducability?

• TREC = ❤️
• There are were no e-commerce datasets!

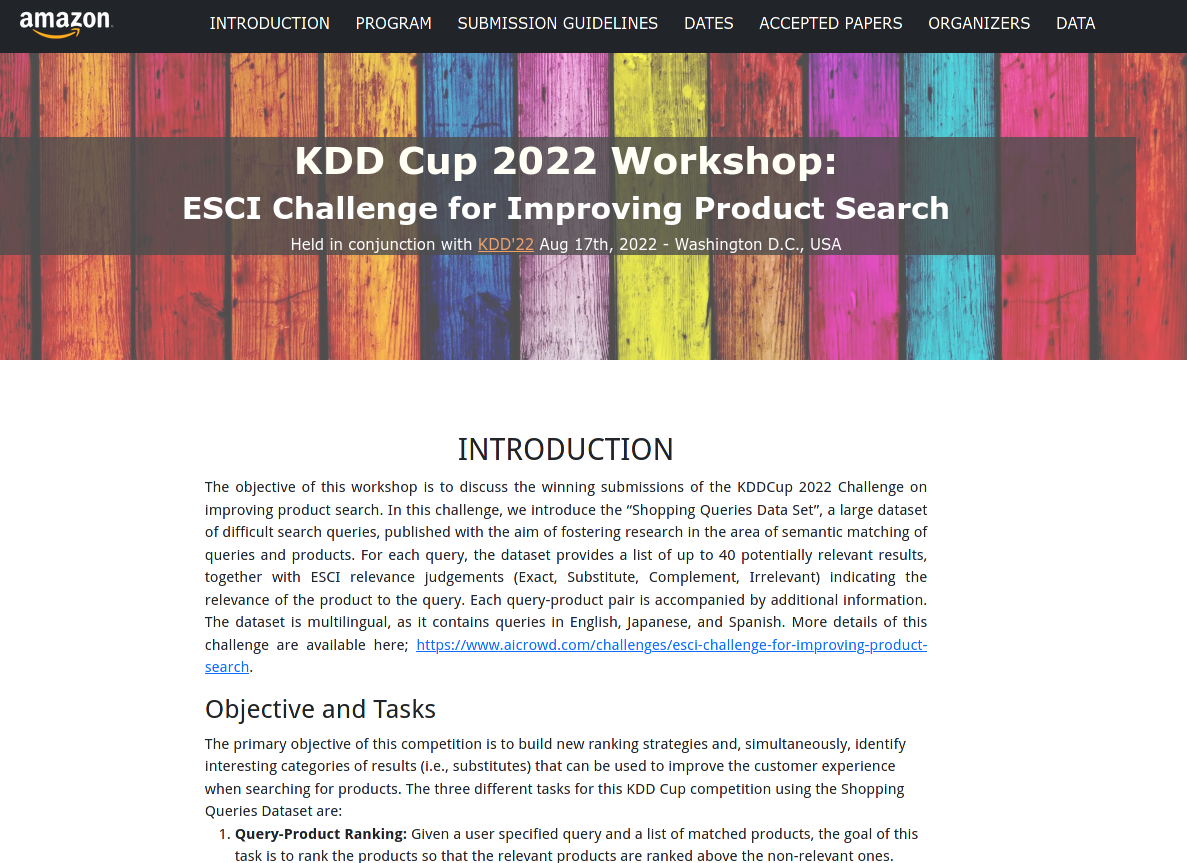

Amazon ESCI: open e-com dataset

• 130k "hard queries" in EN/ES/JP
• 1.7M products
• 2.6M explicit relevance labels

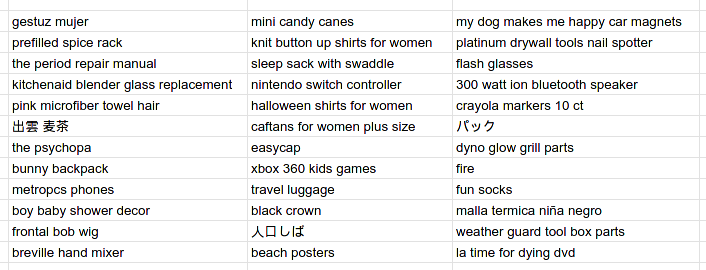

130k hard queries

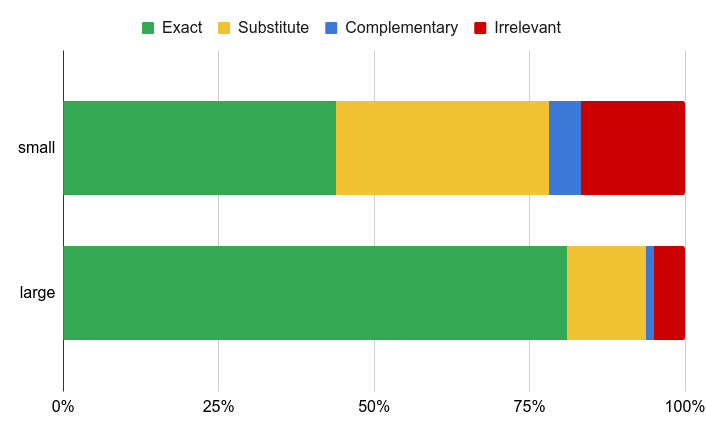

2.6M explicit ESCI labels

E: exact match S: substitute C: complementary I: irrelevant

1.7M real products

  {
    "product_id": "B07PT4BXWK",
    "product_title": "Country Carrot, Artificial Vegetable Fake Food,
                      Bag of 12, 2 Sizes",
    "product_description": "12 pcs vegetables atractive Artificial product.
                      Orange color with green stem, great for decorating.
                      Large size, approximately 6-inches (without stem).",
    "product_bullet_point": "",
    "product_brand": "Mezly",
    "product_color": "Orange",
    "product_locale": "us"
  }


• Text focused: no categories, metadata, reviews
• product_id = ASIN

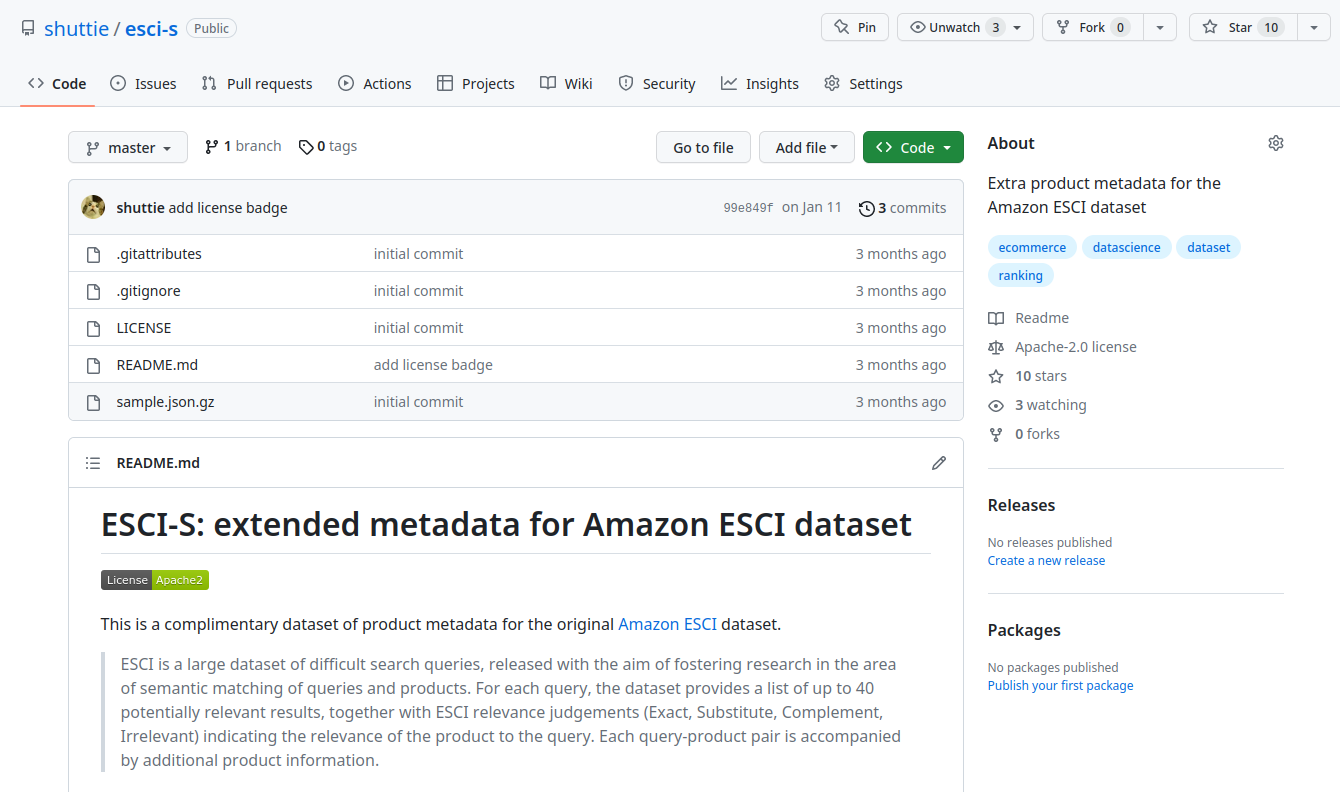

ESCI-S: an extension to the ESCI

Scraped metadata for 92% of ESCI ASINs

https://github.com/shuttie/esci-s

Agenda

Take the ESCI and do the "hybrid search"

• Baseline: BM25
• LambdaMART: BM25 and metadata
• Bi-encoders: the notorious all-MiniLM-L6-v2
• Fine-tuning bi-encoders
• Cross-encoders: off-the-shelf and fine-tuned

Minimal amount of ad-hoc Python code: Metarank!

Hybrid search = a glorified Ensebmle Learning

• Take N weak predictors
• Combine into an ensemble model
• "number of stars" = weak predictor

Linear hybrid search

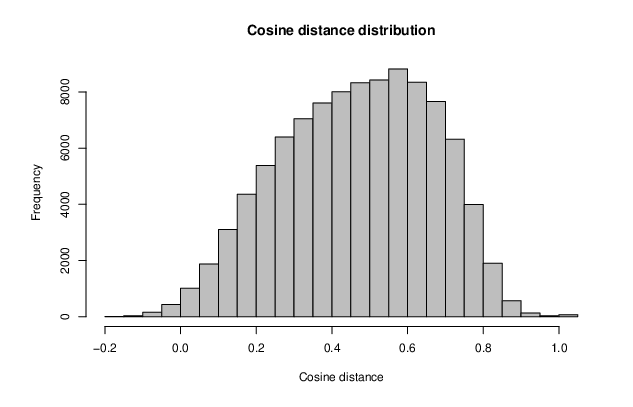

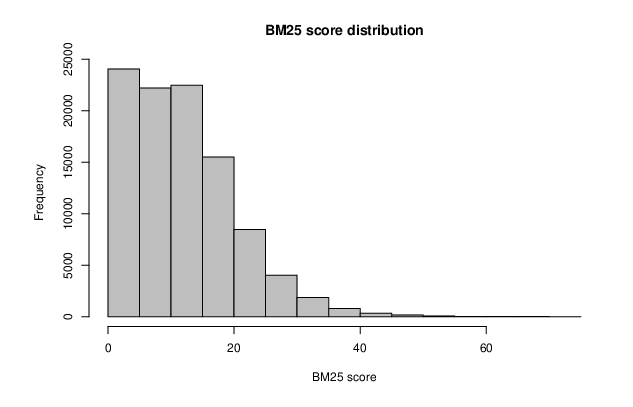

query-title score distribution on ESCI:

score = w₁ * norm(bm25) + w₂ * norm(cos)

Linear hybrid search

Typical problems of

• Normalization: ad-hoc based on distribution
• Correlations: weights for 7-30-90 days CTR
• Linear: misses non-linear dependencies

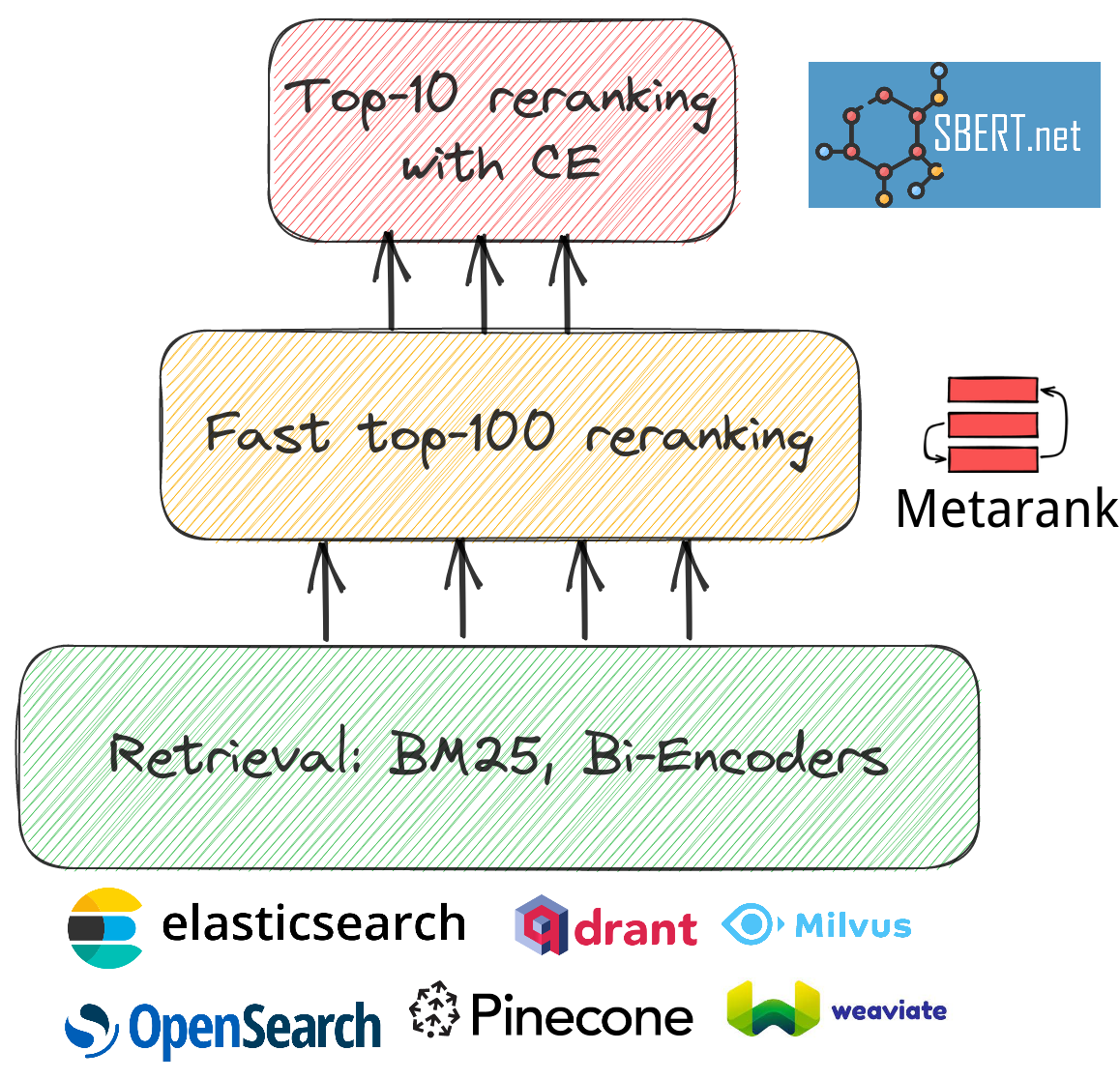

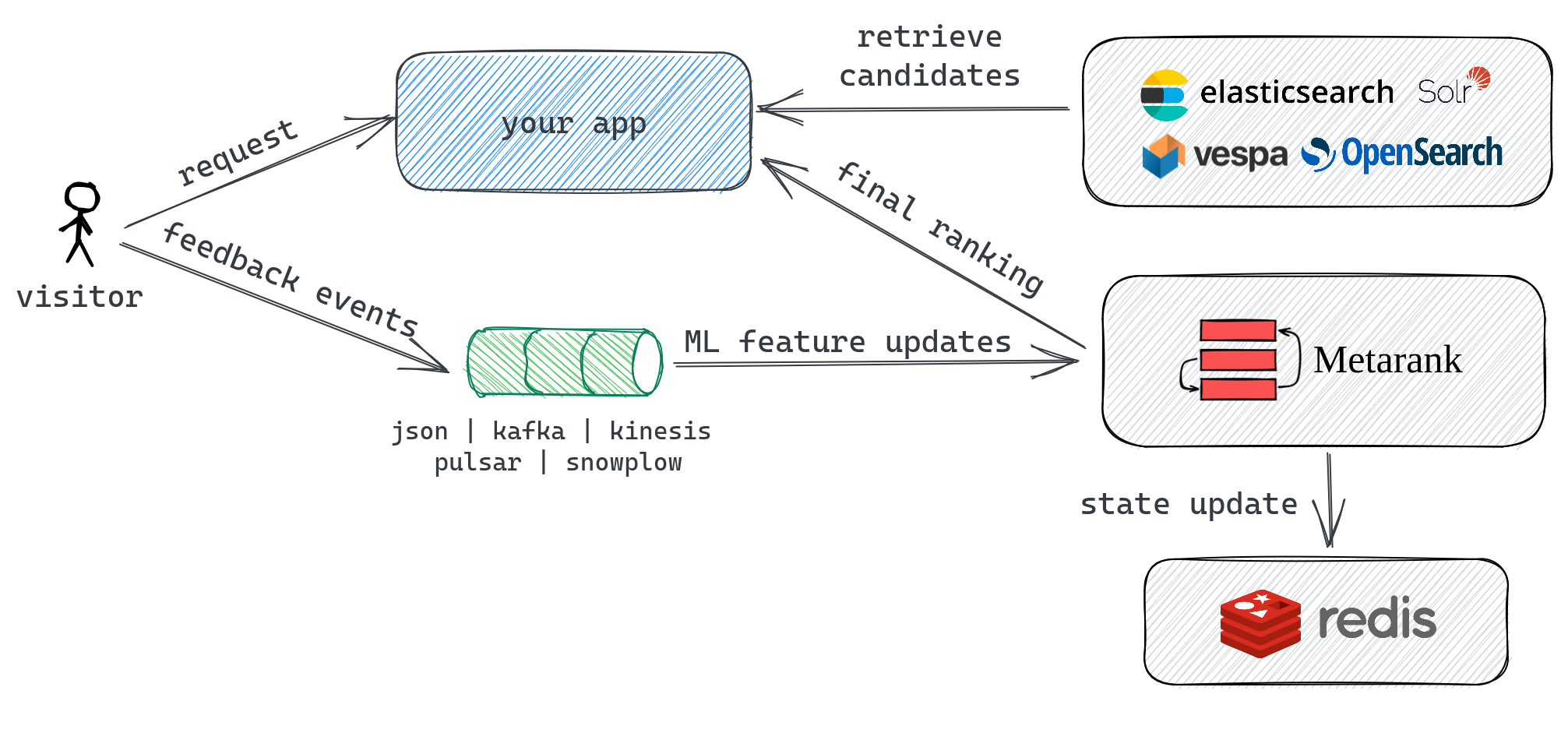

Why Metarank?

• LambdaMART: NDCG, non-linear, correlations

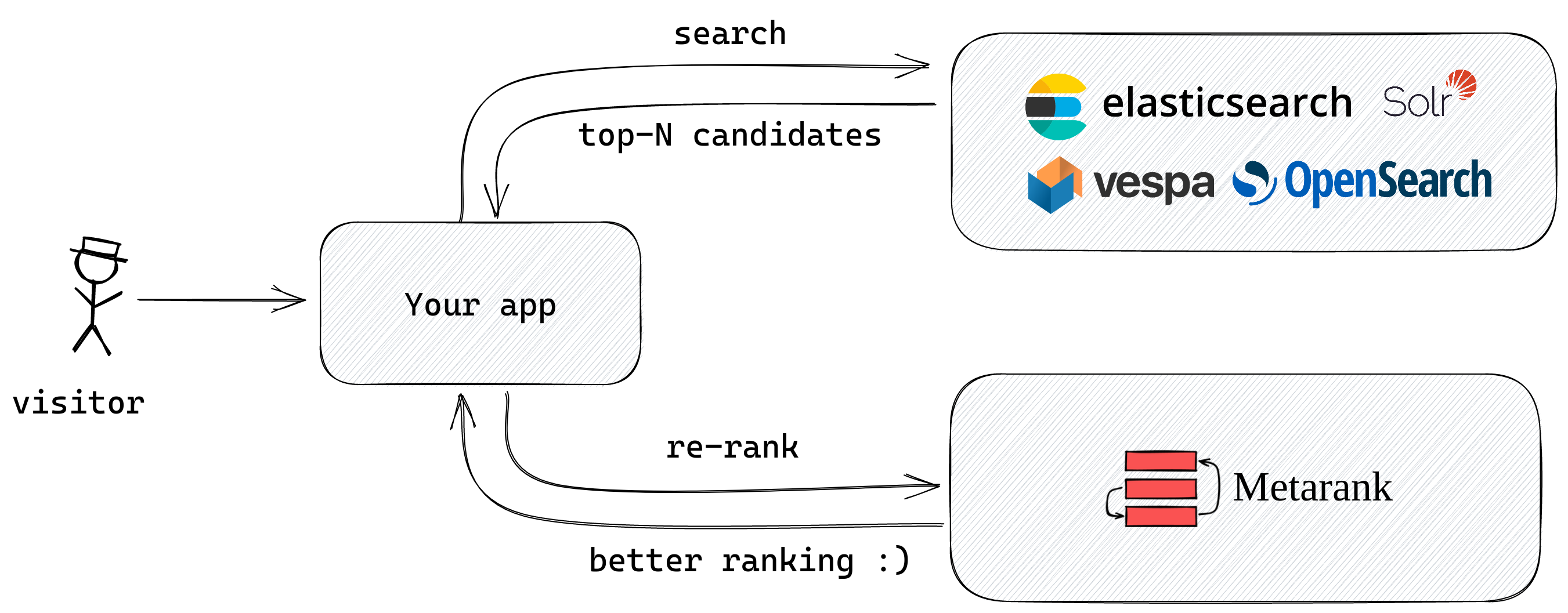

• An open-source secondary reranker
• Search: focus on recall and speed
• Metarank: focus on top-N precision

How it works

• Standalone Mode: no state, just files
• Import existing dataset, build ranking features
• Get NDCG over test set

Baseline: random ranking

Why do we need it?

• High rate of relevant products = high NDCG
• NDCG lower bound

features:
  - type: random
    name: random

models:
  haystack-demo:
    type: lambdamart
    backend:
      type: xgboost
    features:
      - random


Baseline: random ranking

Baseline: BM25

• Multiple fields in ES: optimal boosts?
• ES-LTR: hard to setup
• Compute BM25 without Lucene/ES? 🤔

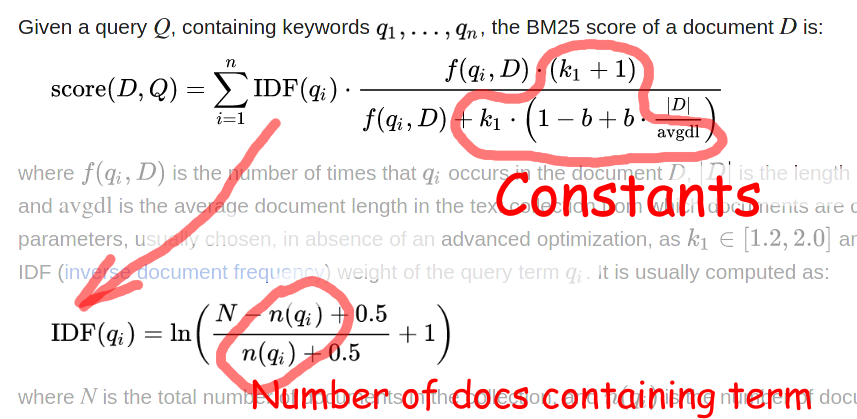

Down the BM25 hole

• Only term frequencies are needed
• k₁=1.2, b=0.75 as in Lucene/ES

BM25 without Lucene

 - type: field_match
   name: query_desc_bm25
   itemField: item.title
   rankingField: ranking.query
   method:
     type: bm25
     language: english
     termFreq: termfreq.json



BM25 over multiple fields

per-field score = weak predictor

features:
  - query_title_bm25
  - query_desc_bm25
  - query_bullets_bm25


query: lawnmower tires without rims

title: Dr.Roc Tire Spoon Lever Dirt Bike Lawn Mower Motorcycle
       Tire Changing Tools with Durable Bag 3 Tire Irons 2
       Rim Protectors 1 Valve Stems Set TR412 TR413

title: MaxAuto 13x5.00-6 Lawn Mower Tires with Rim 13x5.00-6
       Tire and Wheel 13x5-6 NHS Tire 13x5x6 Pneumatic Tire

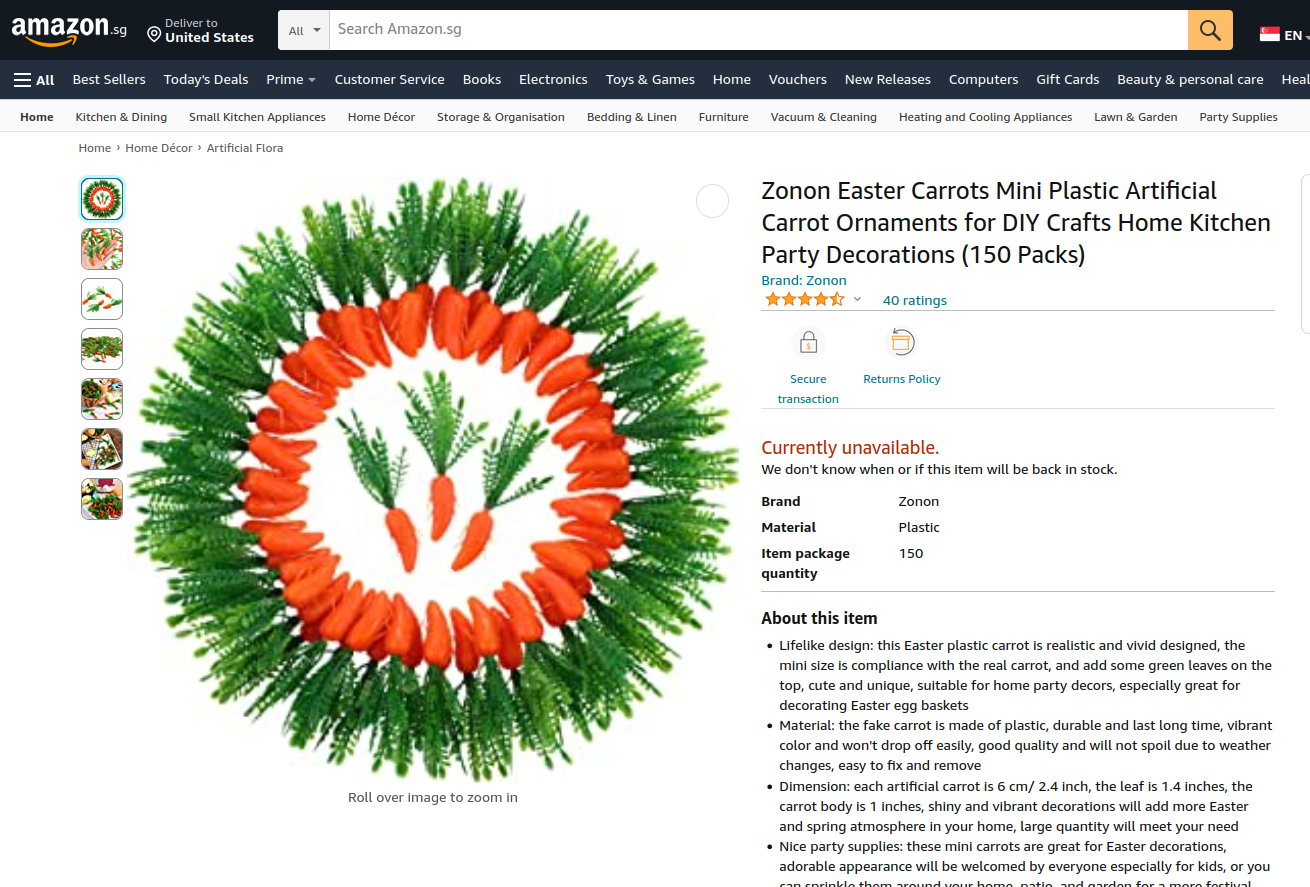

Years of Amazon-specific SEO optimization

LTR: categorical features

  - type: string
    name: material
    field: item.material // color, category[1,2,3]
    scope: item
    encode: index // Supports XGBoost 1.7+/LightGBM 3+/Catboost
                  // native categorical features
    values:
    - fabric
    - glass
    - leather
    - ...

LTR: numeric features

  - type: number
    name: stars
    field: item.stars
    scope: item


# stars, # ratings, price, weight

LTR: 2017 edition

    features: [query_*_bm25, category*,
               color,        material,
               price,        ratings,
               stars,        template,
               weight]


Hybrid Search

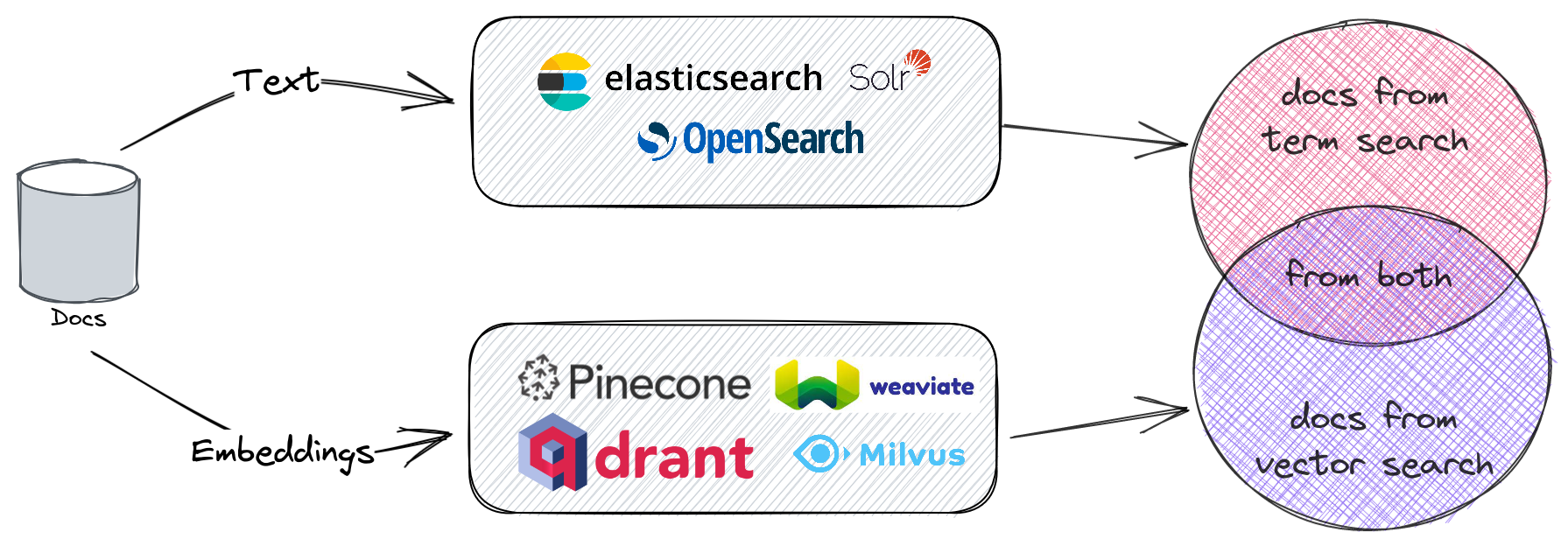

Traditional hybrid search

Crafting embeddings:

• Commercial providers: Cohere, OpenAI
• Pre-trained: sentence-transformers
• DIY: fine-tuning

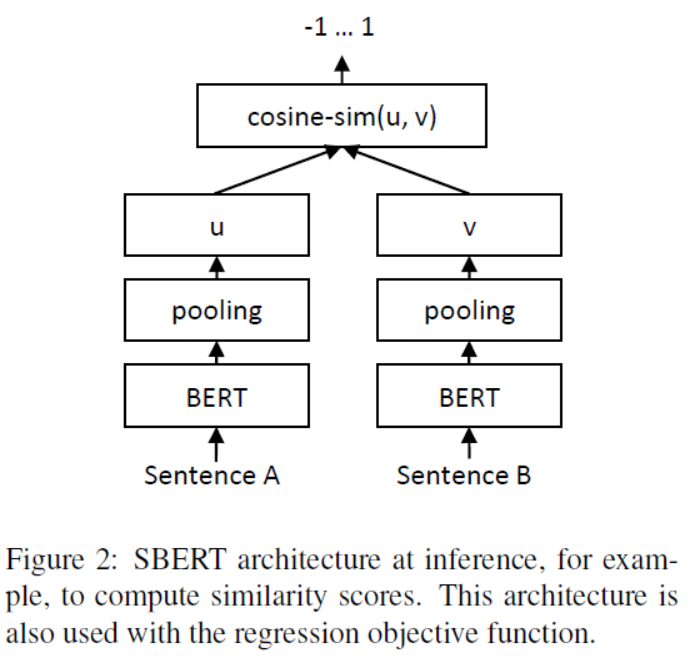

Siamese BERT networks

• Document indexing can happen offline!
• Only need to embed query during search
• HNSW for Approximate k-NN

Pre-trained all-MiniLM-L6-v2

• Small and fast for CPU inference
• Still precise on semantic search

all-MiniLM-L6-v2 in Python

from sentence_transformers import SentenceTransformer, util
model = SentenceTransformer('all-MiniLM-L6-v2')

#Sentences are encoded by calling model.encode()
emb1 = model.encode("This is a red cat with a hat.")
emb2 = model.encode("Have you seen my red cat?")

cos_sim = util.cos_sim(emb1, emb2)
print("Cosine-Similarity:", cos_sim)


Fine, but our search stack is in Java!

all-MiniLM-L6-v2 in Java/ONNX

val text = "This is a red cat with a hat"
val vocab =  DefaultVocabulary.builder().addFromTextFile(...).build()
val bert = new BertFullTokenizer(vocab, true)
val tokensStrings = "[CLS]" :: bert.tokenize(text) :: "[SEP]"

val tokens = tokensStrings.map(t => vocab.getIndex(t)).toArray
val attmask  = Array.fill(tokens.length)(1L)
val tokenTypes = Array.fill(tokens.length)(0L)


all-MiniLM-L6-v2 in Java/ONNX

val env     = OrtEnvironment.getEnvironment()
val session = env.createSession("minilm-v2.onnx", new SessionOptions())
val size = Array(1, tokens.length)

val tensor1 = OnnxTensor.createTensor(env, LongBuffer.wrap(tokens), size)
val tensor2 = OnnxTensor.createTensor(env, LongBuffer.wrap(attmask), size)
val tensor3 = OnnxTensor.createTensor(env, LongBuffer.wrap(tokenTypes), size)
val out = session.run(Map(
  "input_ids" -> tensor1,
  "token_type_ids" -> tensor3,
  "attention_mask" -> tensor2).asJava)

val preds = out.get(0).getValue.asInstanceOf[Array[Array[Array[Float]]]



As seen in: Vespa, OpenSearch Model Serving, Metarank

Bi-encoders in practice

  - type: field_match
    name: query_title_minilm6
    itemField: item.title
    rankingField: ranking.query
    method:
      type: bi-encoder
      model: metarank/all-MiniLM-L6-v2
      dim: 384


Bi-encoder models

• metarank/all-MiniLM-L6-v2: 10M, 386 dims
• metarank/all-MiniLM-L12-v2: 15M, more layers
• metarank/all-mpnet-base-v2: 100M, 768 dims

Bring-your-own-model with ONNX

ONNX: Vespa, OpenSearch Model Serving, Metarank

$> pip install transformers[onnx] sentence-transformers
$> python -m transformers.onnx \
          --model=sentence-transformers/all-MiniLM-L6-v2 \
          export_dir


LTR with bi-encoders

Cosine similarity = yet another ranking feature

Fine-tuning?

What is fine-tuning?

• Existing LLM as a source
• Custom loss: minimize cosine distance
• Slightly update weights on a new dataset

Which LLM to pick?

• MS MiniLM, T5, GPT-J:
  • pro: any model from HuggingFace
  • con: no clue about sentence similarity
  • con: needs a large dataset, slow
• sentence-transformers:
  • pro: 1K queries is a good start
  • con: no recent models

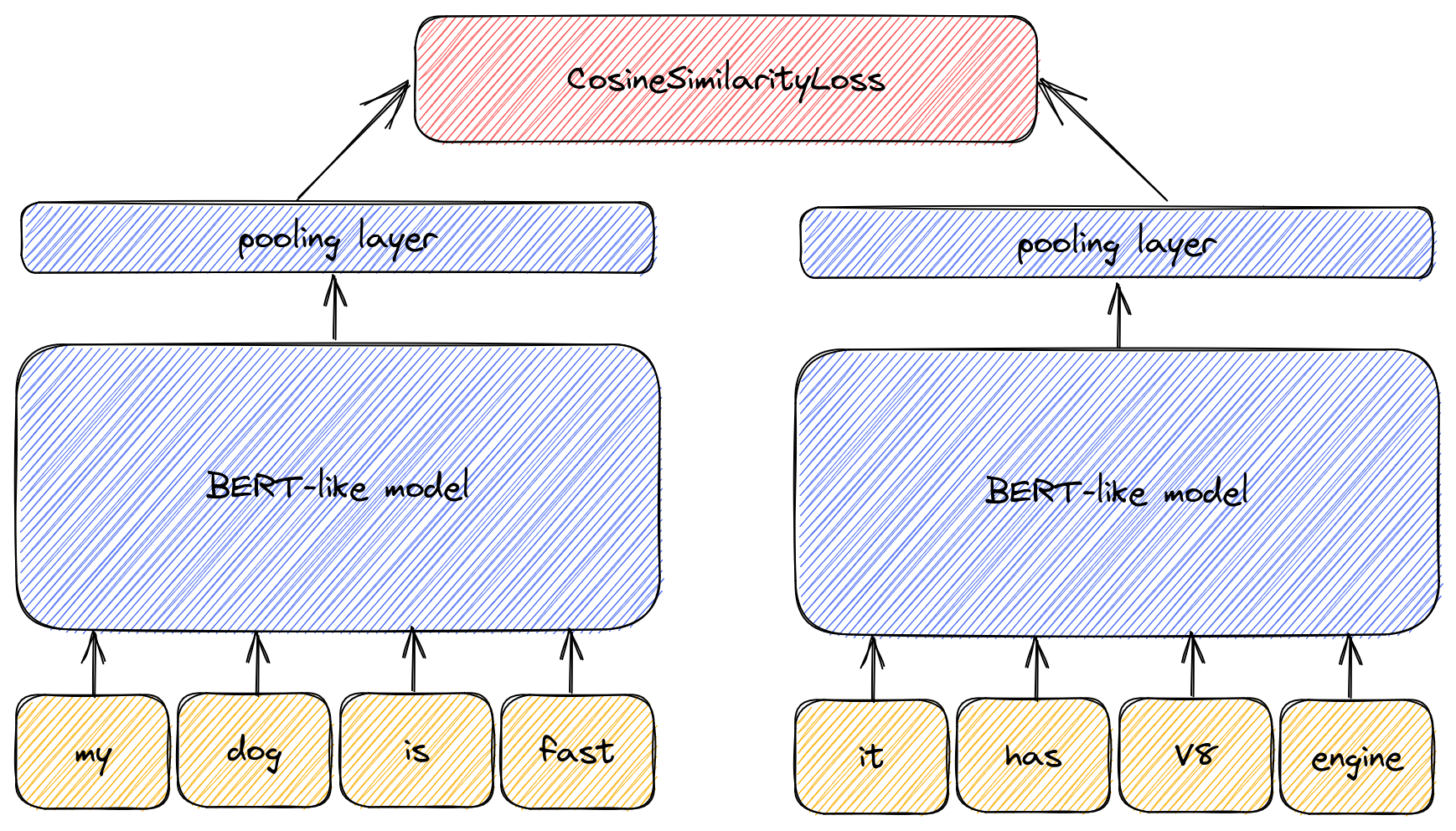

CosineSimilarityLoss

Minimizes the distance within each sample

Needs triplets of query-document-score:

• Linear mapping: E-S-C-I to [1.0, 0.66, 0.33, 0.0]
• Exponential mapping: E-S-C-I to [1.0, 0.1, 0.001, 0.0]

From docs: no need for hard negatives, slow to converge

MultipleNegativesRankingLoss

Needs triplets of query-positive-negative:

• E/I: Exact = positive, Irrelevant = negative
• E/SCI: Exact = positive, other = negative

From docs: hard negatives needed, fast to converge

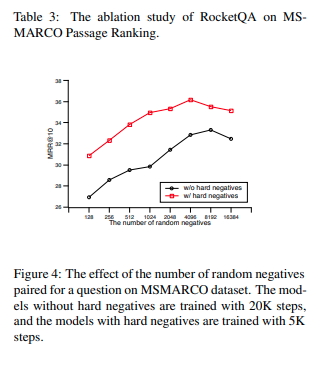

Quality of negatives

• Easy: distinguish dogs from trains
• Hard: distinguish breeds of dogs

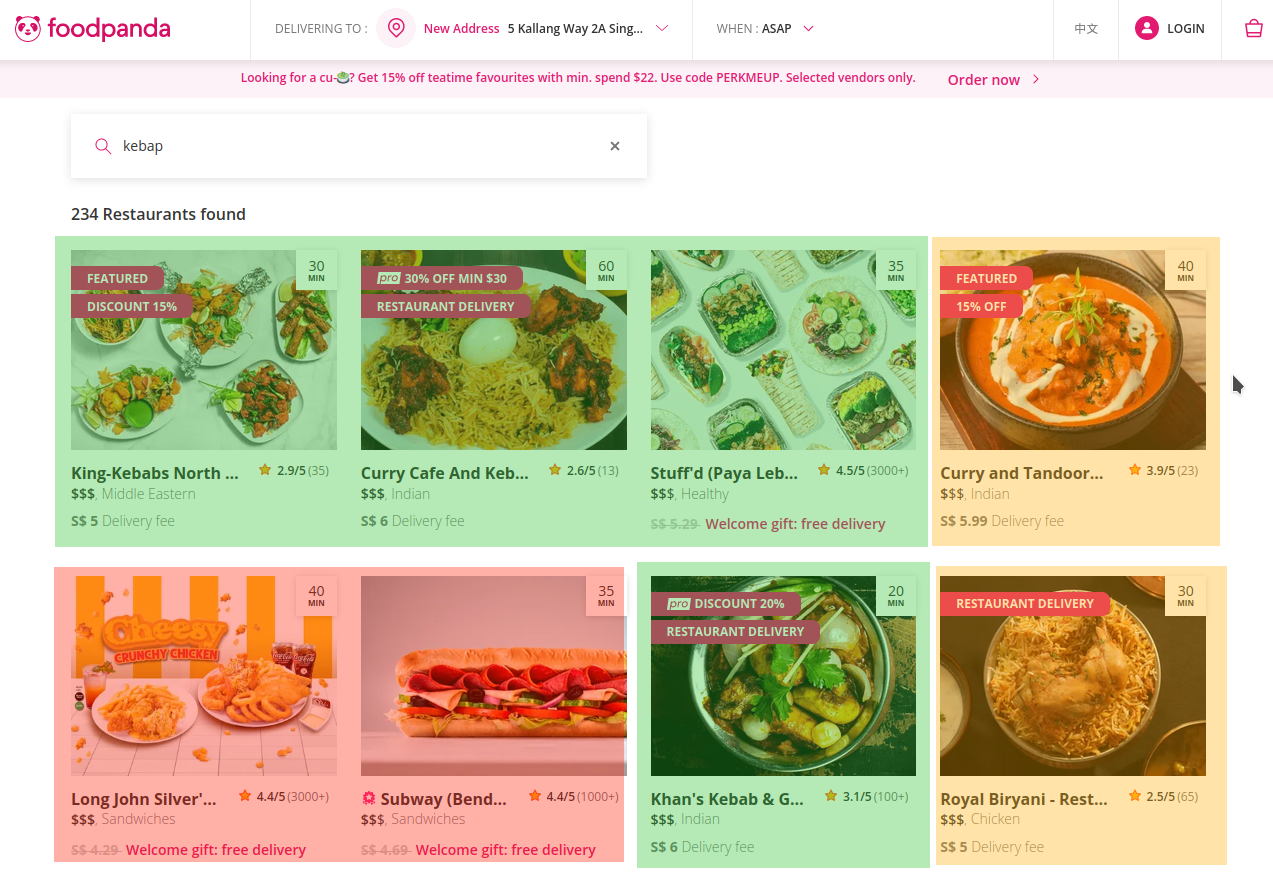

Implicit feedback as labels

Implicit feedback as labels

• Green: high per-query CTR, high confidence
• Yellow: low confidence
• Red: low per-query CTR, high confidence

Fine-tuning is easy

(when you have a GPU)

model = SentenceTransformer('sentence-transformers/all-MiniLM-L6-v2')

train_dataset = ESCIDataset(input='train-small.json.gz')
eval_dataset = ESCIDataset(input='test-small.json.gz')
train_dataloader = DataLoader(train_dataset, shuffle=True)
train_loss = losses.CosineSimilarityLoss(model=model)


model.fit(train_objectives=[(train_dataloader, train_loss)],
          epochs=1,
          optimizer_params = {'lr': 1e-5},
          output_path=model_save_path)

model.save(model_save_path)


Things to watch for

• Batch size: the largest value your GPU can fit
• Epochs: 1-2, quick over-fitting
• Cheap GPUs: Google Colab, Kaggle, vast.ai

CPU vs GPU

all-MiniLM-L6-v2 over ESCI dataset:

• RTX 3060: 6 minutes
• Ryzen 7 2600: 240 minutes

Fine-tuned bi-encoders

L12 and MPNET fine-tuning

LTR and fine-tuned bi-encoders

LTR never makes things worse

Bi-encoder performance

Benchmark     (batch)            (model)  Mode  Cnt   Score   Error  Units
encode              1   all-MiniLM-L6-v2  avgt   30  13.350 ± 1.813  ms/op
encode              1  all-MiniLM-L12-v2  avgt   30  25.954 ± 2.210  ms/op
encode              1  all-mpnet-base-v2  avgt   30  64.208 ± 2.932  ms/op


Conclusions

• Larger the LLM - smaller the training set
• Fine-tuning: simple way for a HUGE relevance boost
• ESCI != e-commerce
• Large LLMs are slow on CPU

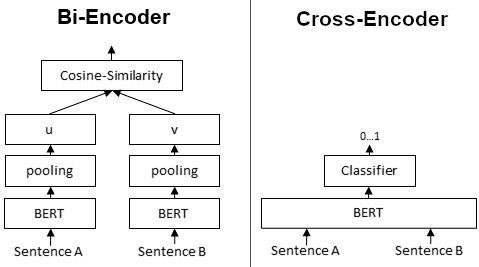

Cross-encoders

Cross-encoders

• Classifier head on top of BERT
• No cosine similarity: let the LLM work

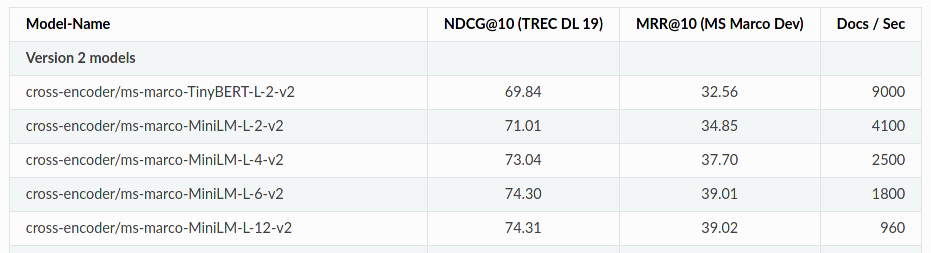

Pre-trained CE

from sentence_transformers import CrossEncoder

model = CrossEncoder('model_name', max_length=512)
scores = model.predict([('How many people live in Berlin?',
                         'Berlin had a population of 3,520,031 people.'),
                        ('How many people live in Berlin?',
                         'Berlin is well known for its museums.')])

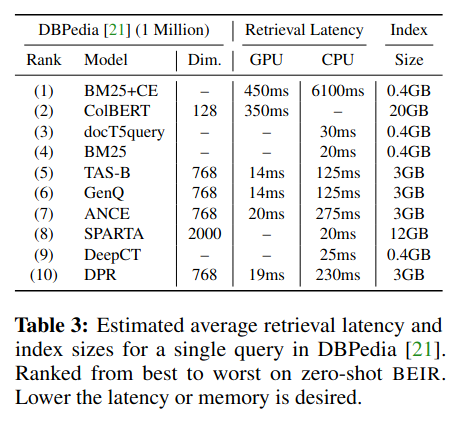

CE: pros & cons

• ChatGPT: "how relevant is text A for query B"
• No Approximate k-NN search, only top-N

Generic SBERT

  - type: field_match
    name: query_title_ce
    itemField: item.title
    rankingField: ranking.query
    method:
      type: cross-encoder
      model: metarank/ce-all-MiniLM-L6-v2
      dim: 384



Fine-tuning cross-encoders

model = CrossEncoder('cross-encoder/ms-marco-MiniLM-L-6-v2', num_labels=1)

train_dataset = ESCIDataset(input='train-small.json.gz')
train_dataloader = DataLoader(train_dataset, shuffle=True)

model.fit(train_dataloader=train_dataloader,
          epochs=1,
          optimizer_params = {'lr': 1e-5},
          output_path=model_save_path)

model.save(model_save_path)


CE fine-tuning results

Avengers, assemble!

models:
  default:
    type: lambdamart
    backend:
      type: xgboost
    features: [query_title_mpnet, query_title_ce, query_title_bm25,
      query_desc_bm25, query_bullets_bm25, category0, category1,
      category2, color, material, price, ratings, stars, template, weight]


LTR in the mix

Cross-encoder performance

Benchmark (batch)                  (model)  Mode  Cnt    Score    Error  Units
encode          1  ce-msmarco-MiniLM-L6-v2  avgt   30   12.298 ±  0.581  ms/op
encode         10  ce-msmarco-MiniLM-L6-v2  avgt   30   58.664 ±  2.064  ms/op
encode        100  ce-msmarco-MiniLM-L6-v2  avgt   30  740.422 ± 13.369  ms/op


BE & CE pre-caching

- type: field_match
  name: query_title_ce
  itemField: item.title
  rankingField: ranking.query
  method:
    type: cross-encoder
    model: metarank/ce-esci-MiniLM-L6-v2
    cache: precomputed-cache.csv


• BE: pre-compute query embeddings for top-100k
• CE: pre-compute scores for top-10k queries x top-100 results

Are CE practical?

• Either top-10, or GPU inference

GPU cloud instance costs

TREC'23 E-Commerse Search

• E2E retrieval: search over complete ESCI
• Ranking: re-rank top-100 matching docs
• Multi-modal: with clicks and images

Dataset release: May 1, submissions till Aug 9

Links

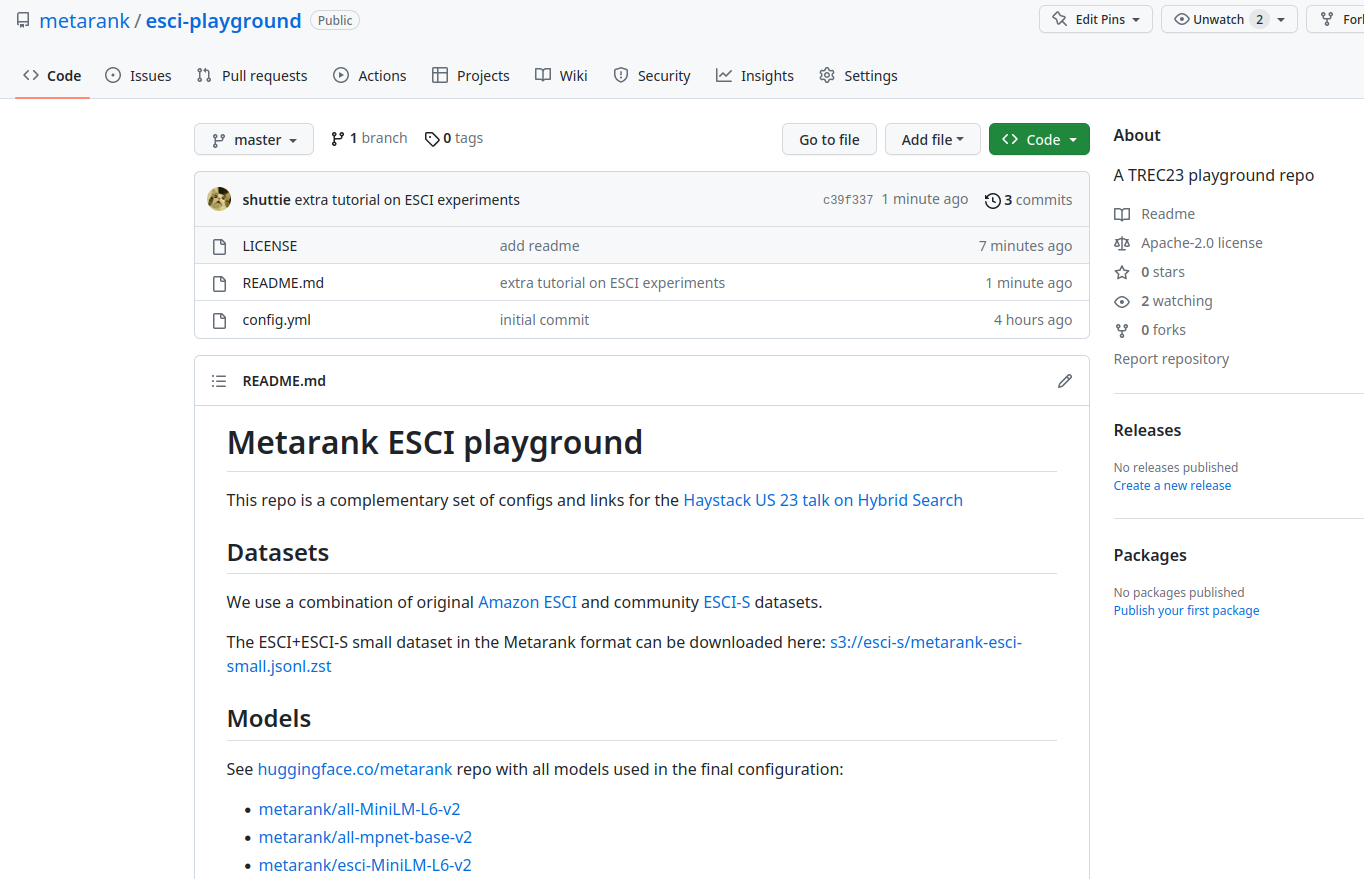

github.com/metarank/esci-playground

Final words

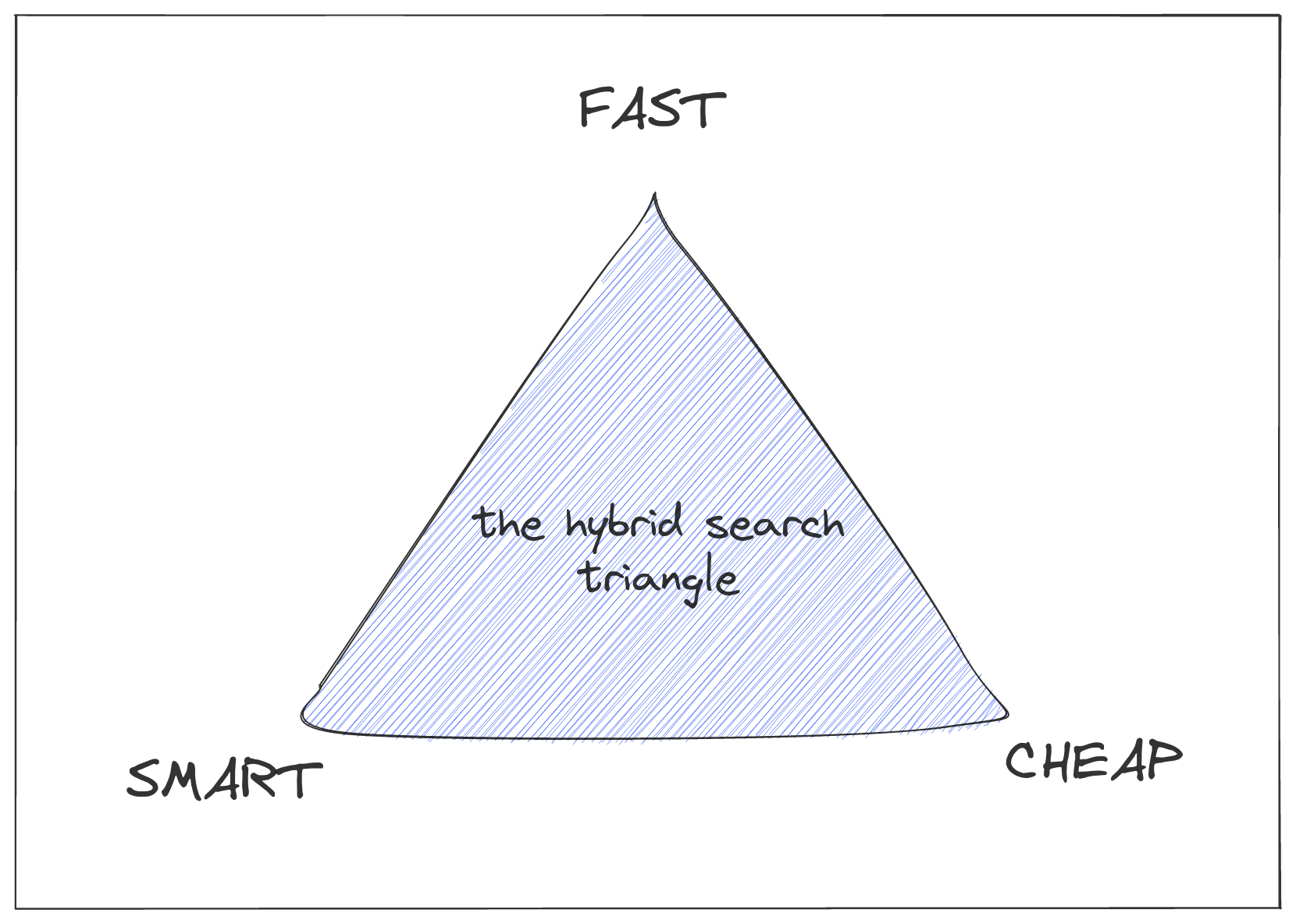

• Balance between hardware costs and ranking quality
• Fine-tuning is worth it, even for mere mortals
• BE/CE/LM are not perfect: ensemble learning FTW

Questions
